Model Parallelization Techniques

As models grow to hundreds of billions of parameters, they can’t fit on a single GPU. Parallelization techniques distribute the model, data, or computation across multiple devices.

Overview of Parallelization Strategies

Technique	What’s Distributed	Communication	Memory Efficiency	Compute Efficiency
Data Parallelism (DP)	Data batches	Gradient sync	Low	High
Tensor Parallelism (TP)	Individual layers	Activation sync	High	Medium
Pipeline Parallelism (PP)	Layer groups	Activation passing	High	Medium (bubbles)
Sequence Parallelism (SP)	Sequence dimension	Activation sync	High	High
Expert Parallelism (EP)	MoE experts	Token routing	High	High
ZeRO / FSDP	Optimizer states, gradients, params	All-gather / reduce-scatter	Very High	High

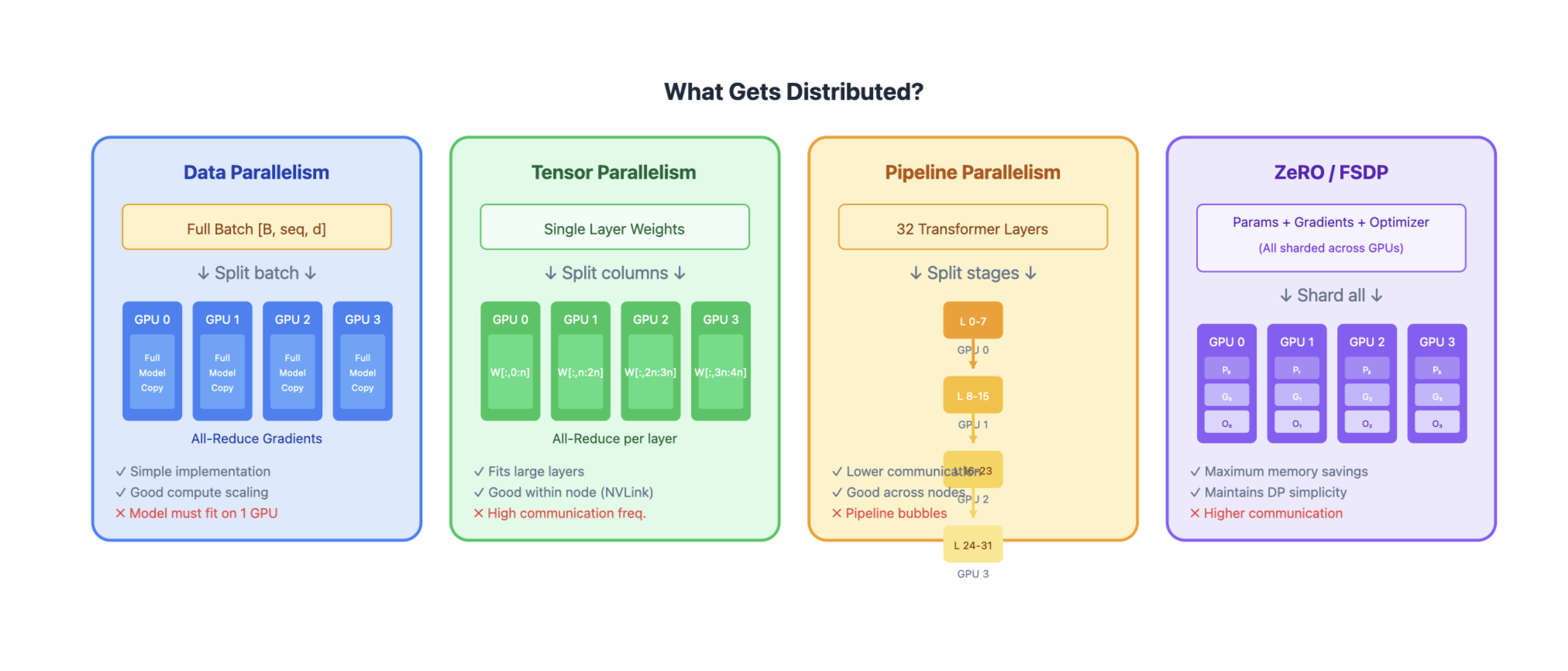

Model Parallelization

1. Data Parallelism (DP)

GPU 0: Full Model Copy → Process Batch 0 → Gradients₀
GPU 1: Full Model Copy → Process Batch 1 → Gradients₁
GPU 2: Full Model Copy → Process Batch 2 → Gradients₂
GPU 3: Full Model Copy → Process Batch 3 → Gradients₃
                              ↓
                    All-Reduce Gradients
                              ↓
                    Update All Model Copies

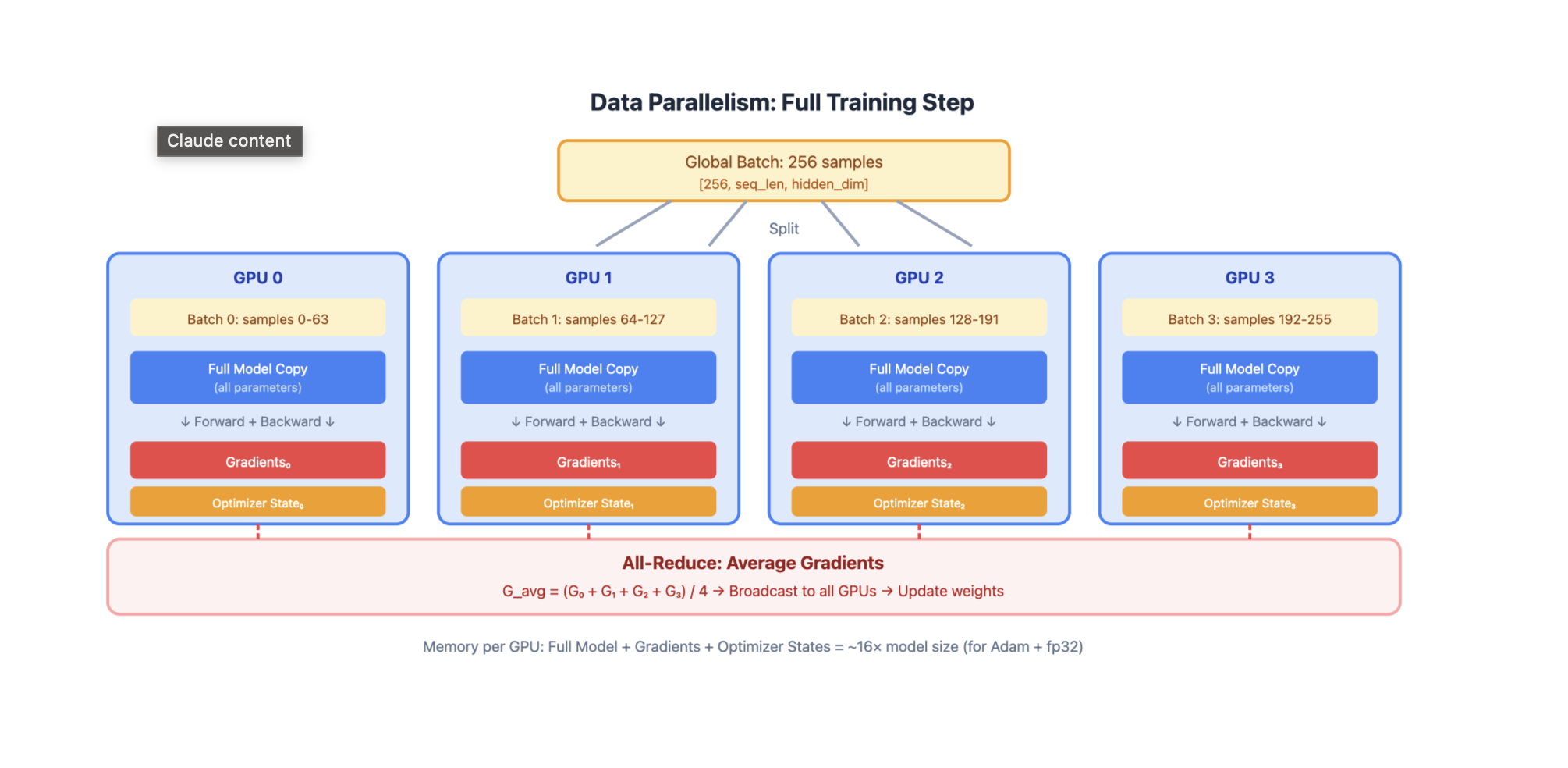

Data Parallelism

How it works:

Each GPU holds a complete copy of the model
Global batch is split across GPUs
Each GPU computes forward/backward on its local batch
Gradients are synchronized via all-reduce
Each GPU updates its local model copy

Pros:

Simple to implement
Near-linear scaling for compute
No model code changes needed

Cons:

Model must fit on single GPU
Memory inefficient (redundant model copies)
Communication scales with model size

2. Tensor Parallelism (TP)

Split individual layers across GPUs. Each GPU holds a slice of every layer. For Linear Layers (Column Parallel)

Weight Matrix W [d_in × d_out]:

         GPU 0          GPU 1
      ┌─────────┐    ┌─────────┐
      │ W[:,:n] │    │ W[:,n:] │
      └─────────┘    └─────────┘

Input X → [X @ W₀]    [X @ W₁] → Concat → Output

For Attention

Q, K, V projections split by heads:

GPU 0: Heads 0-3  →  Attention₀  →  Output₀
GPU 1: Heads 4-7  →  Attention₁  →  Output₁
                          ↓
                    All-Reduce (for output projection)

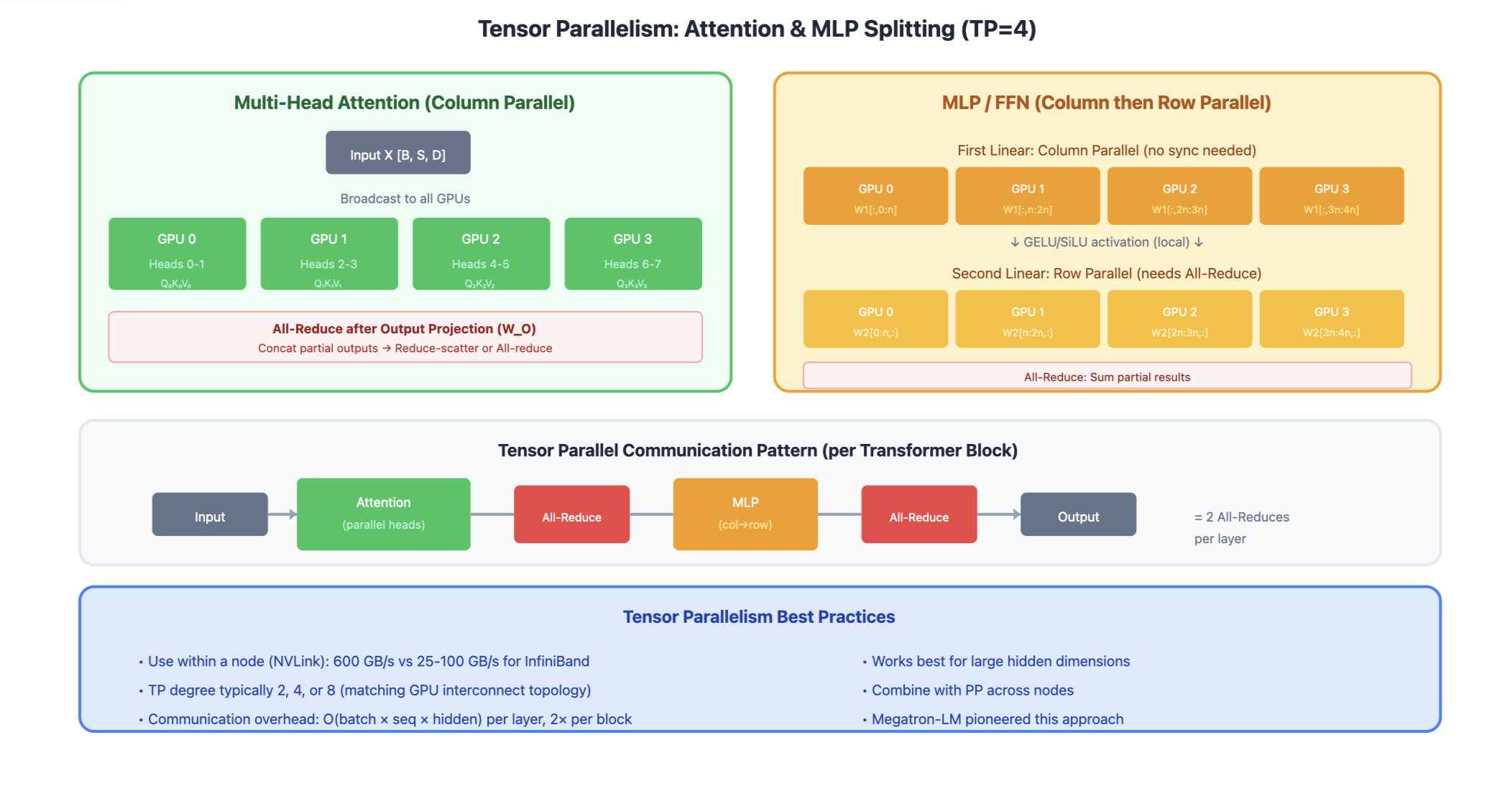

Tensor Parallelism

Communication pattern:

All-reduce after attention output projection
All-reduce after MLP second linear layer

Pros:

Enables models larger than single GPU memory
Preserves batch size (good for latency)
Works well within a node (fast NVLink)

Cons:

High communication overhead between nodes
Requires careful implementation
Synchronization at every layer

3. Pipeline Parallelism (PP)

Split model into sequential stages, each on different GPU(s).

Stage 0 (GPU 0)     Stage 1 (GPU 1)     Stage 2 (GPU 2)     Stage 3 (GPU 3)
┌─────────────┐     ┌─────────────┐     ┌─────────────┐     ┌─────────────┐
│ Layers 0-7  │ ──► │ Layers 8-15 │ ──► │ Layers 16-23│ ──► │ Layers 24-31│
└─────────────┘     └─────────────┘     └─────────────┘     └─────────────┘

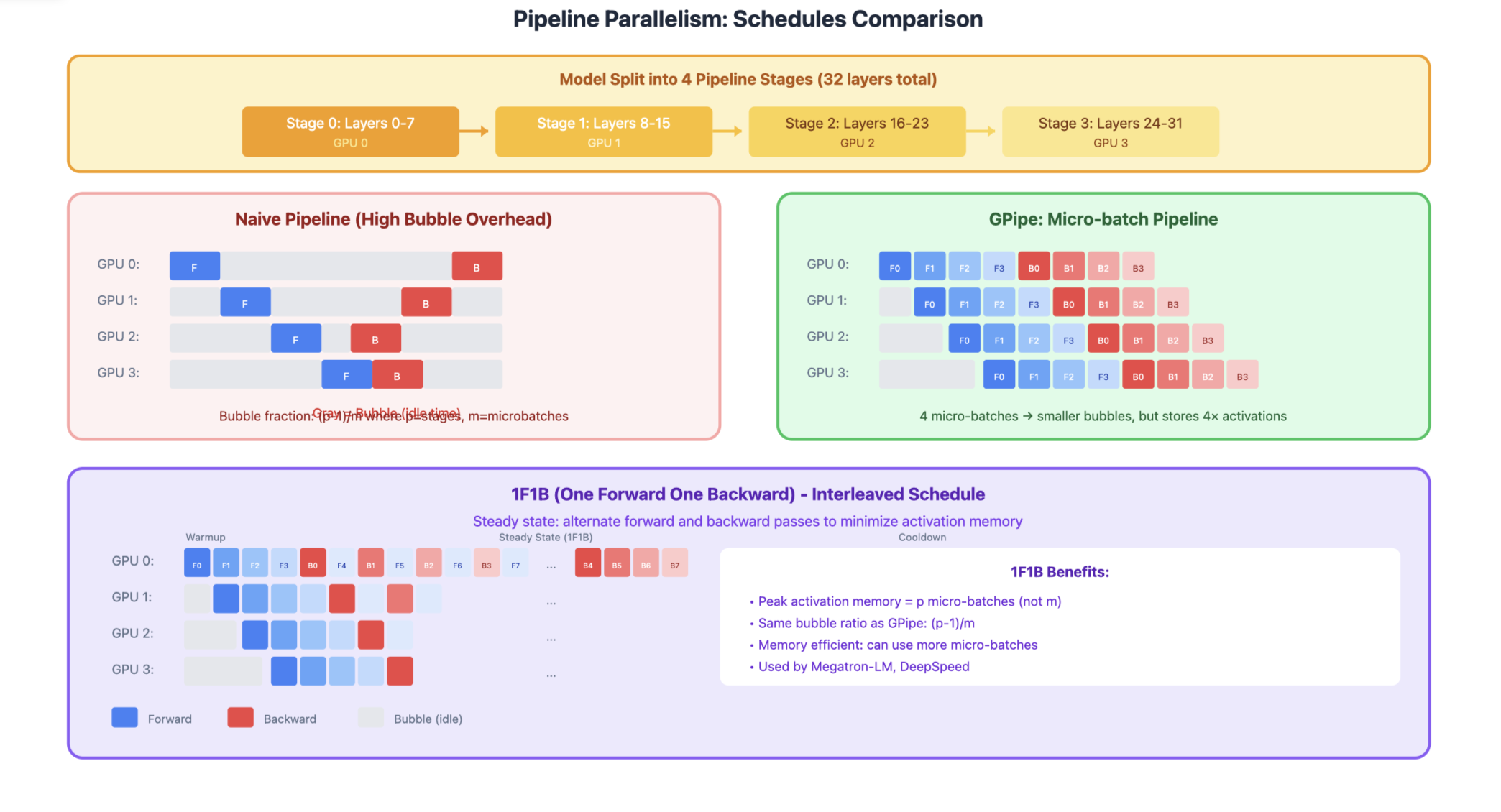

Pipeline Parallelism

The Bubble Problem Naive pipeline has idle time (bubbles):

Time →
GPU 0: [F0][F1][F2][F3][  ][  ][  ][  ][B3][B2][B1][B0]
GPU 1: [  ][F0][F1][F2][F3][  ][  ][B3][B2][B1][B0][  ]
GPU 2: [  ][  ][F0][F1][F2][F3][B3][B2][B1][B0][  ][  ]
GPU 3: [  ][  ][  ][F0][F1][F2][F3][B3][B2][B1][B0][  ][  ][  ]
        ↑ Bubbles (idle time)

GPipe: Micro-batching Split batch into micro-batches to reduce bubbles:

Time →
GPU 0: [F0][F1][F2][F3][B0][B1][B2][B3]
GPU 1: [  ][F0][F1][F2][F3][B0][B1][B2][B3]
GPU 2: [  ][  ][F0][F1][F2][F3][B0][B1][B2][B3]
GPU 3: [  ][  ][  ][F0][F1][F2][F3][B0][B1][B2][B3]
        ↑ Much smaller bubbles!

1F1B Schedule (Interleaved) Interleave forward and backward passes:

GPU 0: [F0][F1][F2][F3][B0][F4][B1][F5][B2][B3][B4][B5]
GPU 1: [  ][F0][F1][F2][B0][F3][B1][F4][B2][F5][B3][B4][B5]
...

Pros:

Memory efficient (only store activations at boundaries)
Works well across nodes (less communication)
Can combine with TP within stages

Cons:

Pipeline bubbles reduce efficiency
Complex scheduling
Load balancing between stages

4. Sequence Parallelism (SP)

Split the sequence dimension across GPUs. Useful for very long sequences.

Sequence: [Token 0, Token 1, ..., Token 8191]

GPU 0: Tokens 0-2047      →  Local Attention  →  Output₀
GPU 1: Tokens 2048-4095   →  Local Attention  →  Output₁
GPU 2: Tokens 4096-6143   →  Local Attention  →  Output₂
GPU 3: Tokens 6144-8191   →  Local Attention  →  Output₃

For cross-partition attention: Ring attention / All-to-all communication

Ring Attention:

KV pairs are passed in a ring between GPUs
Each GPU computes partial attention, accumulates results
Enables arbitrarily long sequences

Pros:

Enables very long context lengths
Reduces memory per GPU for activations
Complements tensor parallelism

Cons:

Complex implementation
Communication overhead for attention
Need careful handling of causal masks

5. Expert Parallelism (EP)

For Mixture of Experts (MoE) models, distribute experts across GPUs.

Input Tokens
     ↓
  Router (on all GPUs)
     ↓ (token routing decisions)
┌────┴────┬────┴────┬────┴────┬────┴────┐
│ GPU 0   │ GPU 1   │ GPU 2   │ GPU 3   │
│Expert 0 │Expert 1 │Expert 2 │Expert 3 │
│Expert 4 │Expert 5 │Expert 6 │Expert 7 │
└────┬────┴────┬────┴────┬────┴────┬────┘
     └─────────┴─────────┴─────────┘
                  ↓
            All-to-All (gather results)
                  ↓
              Combined Output

Communication:

All-to-all to send tokens to their assigned experts
All-to-all to gather results back

Pros:

Natural parallelism for MoE
Experts are independent (no sync needed)
Scales number of parameters without scaling compute

Cons:

Load imbalance if routing is uneven
All-to-all communication can be expensive
Requires balanced expert assignment

6. ZeRO (Zero Redundancy Optimizer) / FSDP

Progressive sharding of optimizer states, gradients, and parameters.

ZeRO Stages

ZeRO-1: Shard Optimizer States

GPU 0: Full Params, Full Grads, Optimizer₀ (1/N params)
GPU 1: Full Params, Full Grads, Optimizer₁ (1/N params)
GPU 2: Full Params, Full Grads, Optimizer₂ (1/N params)
GPU 3: Full Params, Full Grads, Optimizer₃ (1/N params)

Memory per GPU: Params + Grads + Optimizer/N

ZeRO-2: Shard Optimizer States + Gradients

GPU 0: Full Params, Grads₀, Optimizer₀
GPU 1: Full Params, Grads₁, Optimizer₁
GPU 2: Full Params, Grads₂, Optimizer₂
GPU 3: Full Params, Grads₃, Optimizer₃

Memory per GPU: Params + (Grads + Optimizer)/N

ZeRO-3: Shard Everything

GPU 0: Params₀, Grads₀, Optimizer₀
GPU 1: Params₁, Grads₁, Optimizer₁
GPU 2: Params₂, Grads₂, Optimizer₂
GPU 3: Params₃, Grads₃, Optimizer₃

Memory per GPU: (Params + Grads + Optimizer)/N

Communication:

All-gather parameters before forward/backward Reduce-scatter gradients after backward

Pros:

Dramatic memory savings
Maintains data parallelism simplicity
Scales to very large models

Cons:

Increased communication volume
ZeRO-3 has highest communication cost
May need communication-computation overlap

7. 3D Parallelism

Combine DP, TP, and PP for maximum scale.

Example: 64 GPUs = 4 (DP) × 4 (TP) × 4 (PP)

         ┌─── DP Replica 0 ───┐    ┌─── DP Replica 1 ───┐
         │                    │    │                    │
PP Stage │  TP Group 0-3     │    │  TP Group 16-19   │
    0    │  (Layers 0-7)     │    │  (Layers 0-7)     │
         │                    │    │                    │
         ├────────────────────┤    ├────────────────────┤
PP Stage │  TP Group 4-7     │    │  TP Group 20-23   │
    1    │  (Layers 8-15)    │    │  (Layers 8-15)    │
         │                    │    │                    │
         ├────────────────────┤    ├────────────────────┤
PP Stage │  TP Group 8-11    │    │  TP Group 24-27   │
    2    │  (Layers 16-23)   │    │  (Layers 16-23)   │
         │                    │    │                    │
         ├────────────────────┤    ├────────────────────┤
PP Stage │  TP Group 12-15   │    │  TP Group 28-31   │
    3    │  (Layers 24-31)   │    │  (Layers 24-31)   │
         └────────────────────┘    └────────────────────┘

Guidelines:

TP within nodes: Fast NVLink communication
PP across nodes: Lower bandwidth needed
DP across replicas: Gradient sync less frequent
