LLM Inference

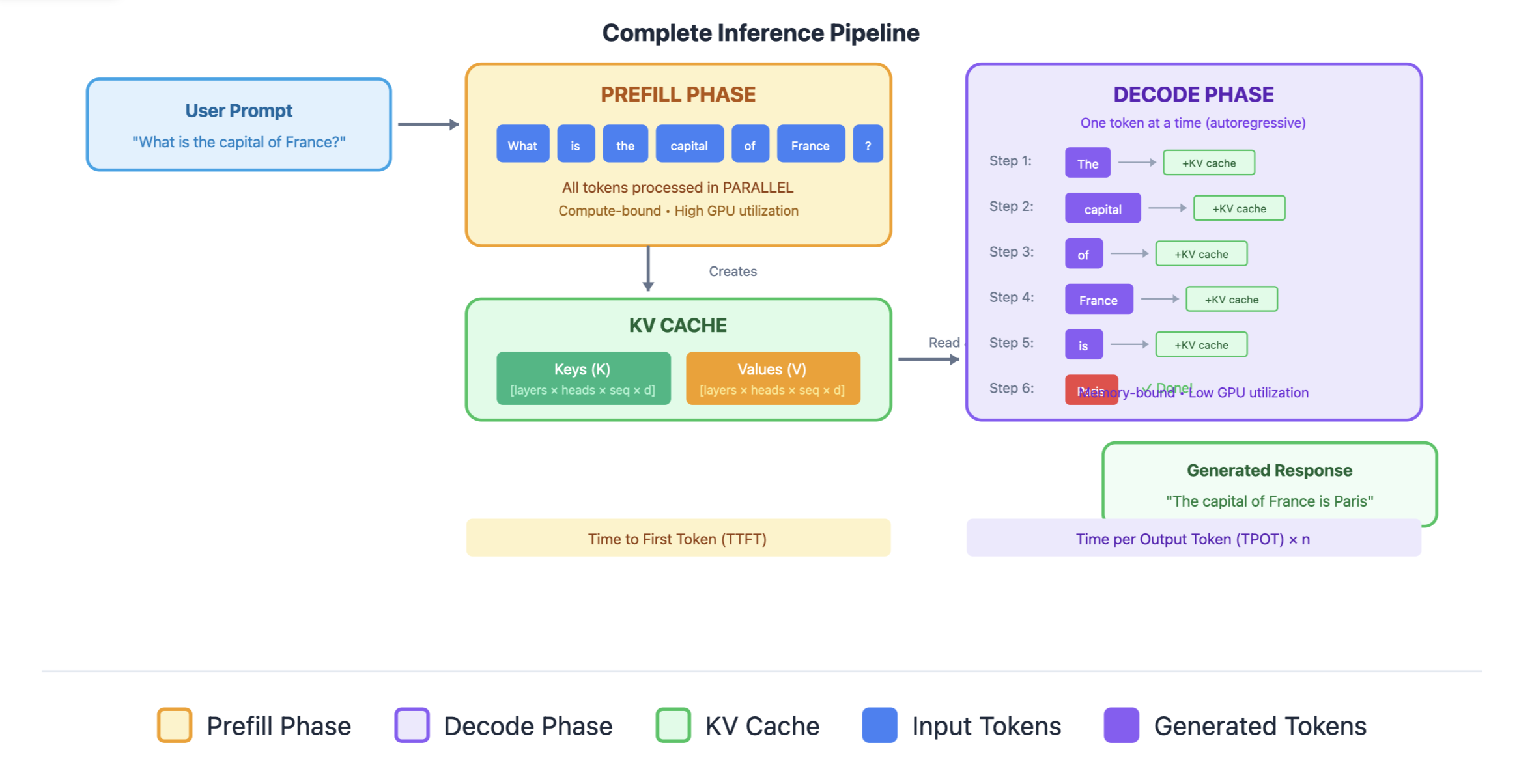

Two Phases of LLM Inference

When you send a prompt to an LLM and it generates a response, inference happens in two distinct phases:

Phase 1: Prefill (Prompt Processing)

The prefill phase processes the input prompt in parallel.

Characteristics:

• Parallel computation: All prompt tokens processed simultaneously
• Compute-bound: Heavy matrix multiplications (GPU cores fully utilized)
• One forward pass: Single pass through all transformer layers
• Generates KV cache: Stores key-value pairs for all prompt tokens

Phase 2: Decode

The model generates tokens one at a time, autoregressively.

Characteristics:

• Sequential computation: One token per forward pass
• Memory-bound: Small compute per step, bottlenecked by memory bandwidth
• Many forward passes: One pass per generated token
• Extends KV cache: Adds new key-value pairs each step

Without KV Cache (Naive Approach)

Generating token 100:

• Recompute K, V for tokens 1-99 (wasteful!)
• Compute Q for token 100
• Attention over all 100 positions
• Complexity: O(n²) per token → O(n³) total for n tokens

With KV Cache (Standard Approach) Generating token 100:

• Retrieve cached K, V for tokens 1-99
• Compute K, V only for token 100, append to cache
• Compute Q for token 100
• Attention over all 100 positions
• Complexity: O(n) per token → O(n²) total for n tokens

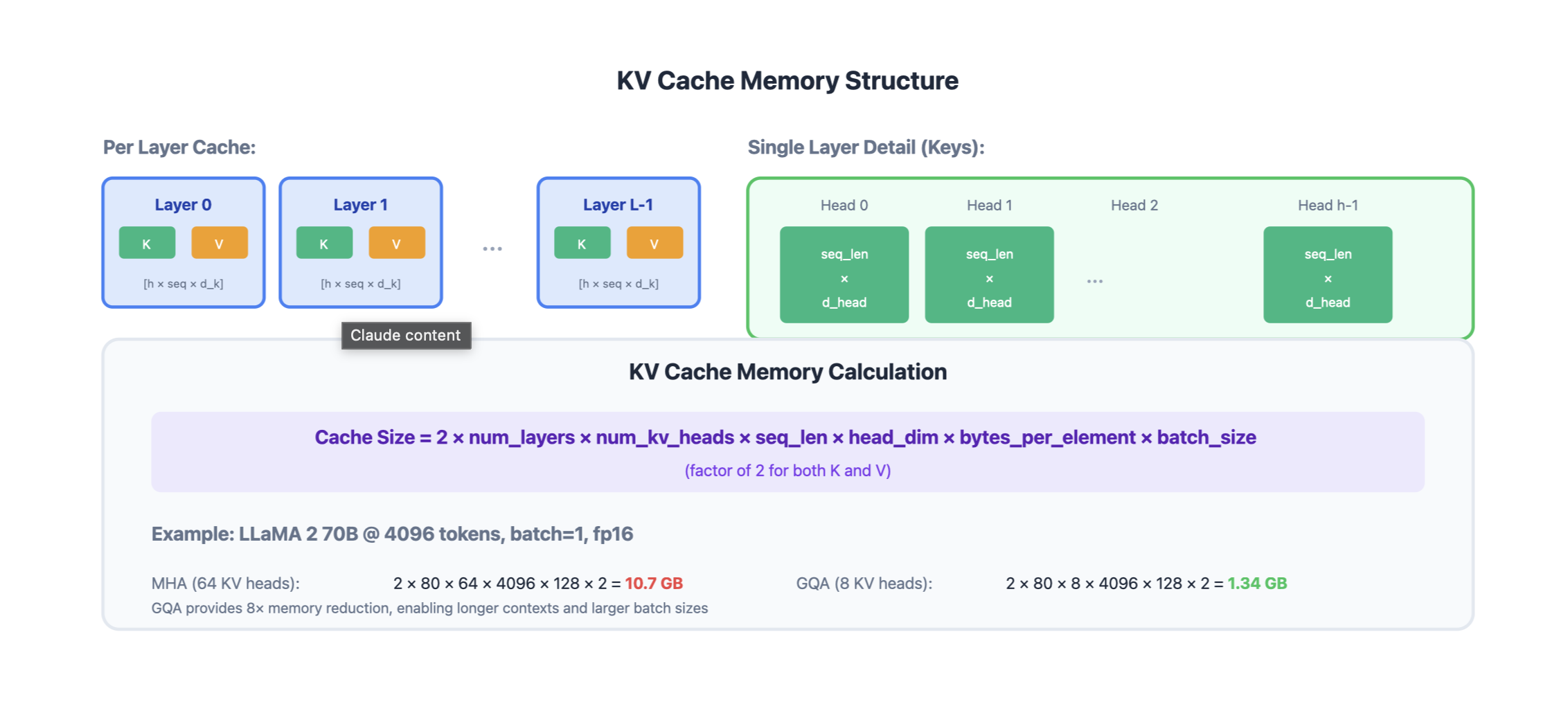

Memory Analysis

KV Cache Size Formula

KV Cache Memory = 2 × num_layers × num_heads × seq_len × head_dim × bytes_per_element × batch_size

Note:
- 2 for Key and Value
- num_layer as each layer has its own K and V matrices
- each layer has multiple attention heads
- seq_len is number of tokens in context
- bytes_per_element is precision (FP32, FP16 etc.)
- batch_size is number of sequences processed simultaneously

Example: LLaMA 2 70B

- Layers: 80
- Heads: 64 (with GQA: 8 KV heads)
- Head dim: 128
- Sequence: 4096 tokens
- Dtype: float16 (2 bytes)
- Batch: 1

KV Cache = 2 × 80 × 8 × 4096 × 128 × 2 × 1
         = 1.34 GB per sequence!

This is why KV cache memory is often the bottleneck for serving LLMs.

Prefill vs Decode: Computational Profile

Aspect	Prefill	Decode
Tokens processed	All prompt tokens (parallel)	One token (sequential)
Compute intensity	High (compute-bound)	Low (memory-bound)
GPU utilization	High (matrix ops)	Low (memory transfers)
Bottleneck	FLOPS	Memory bandwidth
Latency	Time to First Token (TTFT)	Time per Output Token (TPOT)
KV cache	Created	Extended

The Memory Bandwidth Problem in Decode

During decode, for each token:

1. Load model weights: ~140 GB (for 70B model in FP16)
2. Load KV cache: ~1-10 GB (depends on sequence length)
3. Compute: Very small amount of actual math
4. Store updated KV cache
